Visiolite Access

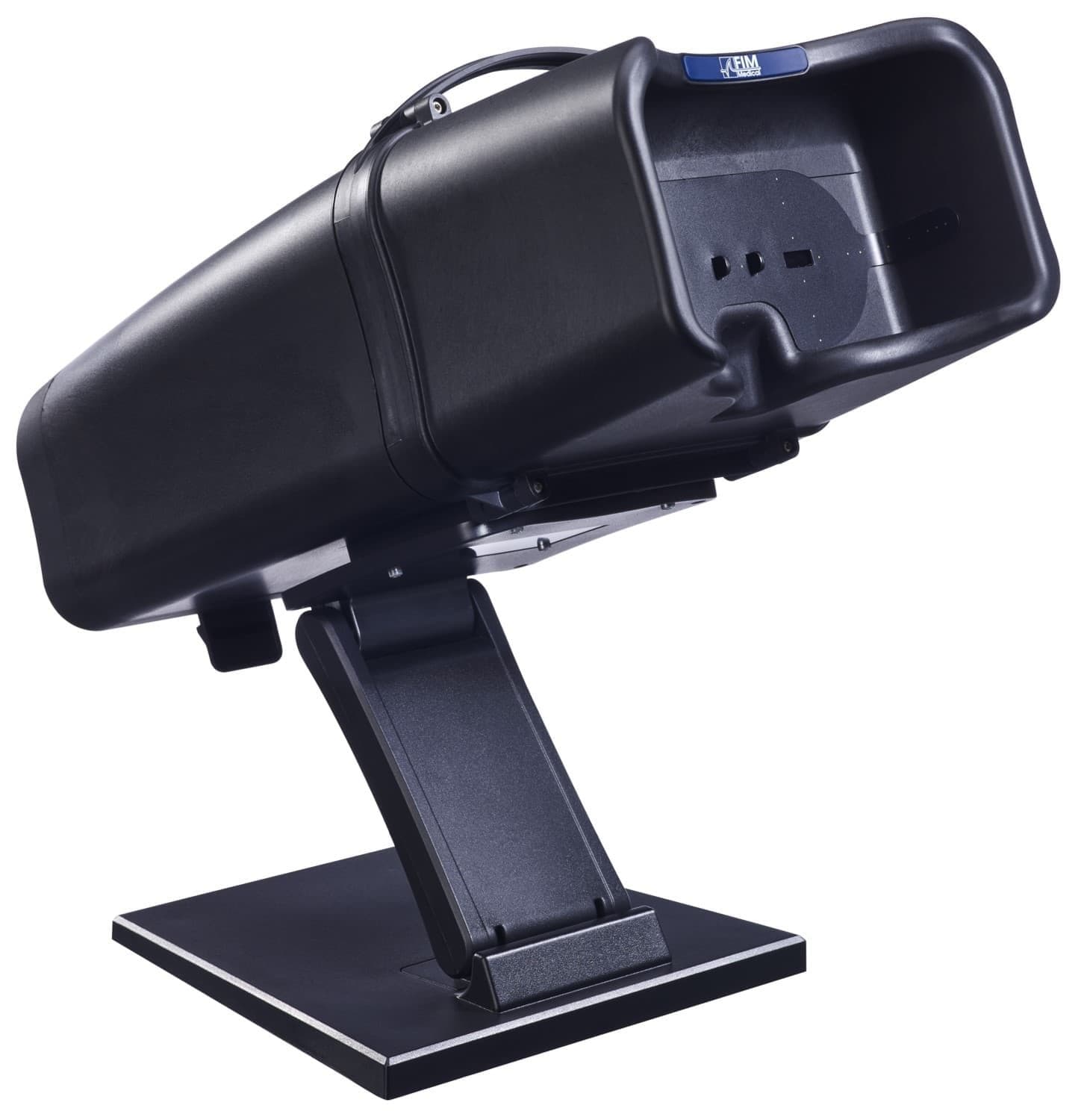

Visiolite® Access

Purpose-built vision tester

The Visiolite® Access is a purpose-built vision screener. Powered by patented technology, it combines precision, performance, and ease of
use, delivering reliable results from large-scale screening to individual assessments. Versatile and dependable, the Visiolite® Access is a comprehensive solution for modern vision screening needs. Compact, lightweight (3.5 kg), and easy to carry, the device can be used anywhere, making it easy to transport and ideal for mobile testing.

Technical specifications

Dimensions
(W x L x H):
40 x 20 x 22 cm
(16 x 8 x 9’)
Weight: 3.5kg / 7.72 lbs
Internal display: TFT-LCD 5.46” 2K 1440p (2560 x 1440)
Backlight type: Single ( 1 x 14 LED)
Brightness levels: Photopic 80 or 160cd/m2
Mesopic 3 cd/m2
Optical distances: Near vision: 35cm (14”)
Intermediate vision: 60cm (24”) 81cm (32”)
Far vision: 6m (20 ft)
Hyperopia: + 16, + 1.56
Connectivity: USB Type A
Video cable: DVI (1 metre)
Touchscreen: TFT-LCD 7” 1024 x 600
(Capacitive touch)
Protection level: Medical with 2 levels of patient protection
(2 x MOPP cf. EN60601-1)
Electric class: II
Medical class: Class I (rule 13), MDR 2017/745 Annex VIII
EMDN code Z12120120 - Instruments for the assessment
of visual functionality
GMDN code 65177 - Vision physiology / eye movement
analysis system
Marking: CE 2025
Regulatory
standards:
MDR 2017/745, ISO 10993-1, EN 62366-
1:2015/A1:2020, EN ISO 15223-1:2021, EN ISO
20417:20216
Security standards: ISO 10993- 1, EN 60601-1, EN 60601-1-2, IEC
60601-1-6, ANSI Z80.36, EN ISO 15004-2
Power supply unit: Input: 100-240V AC / 50-60Hz / 0,6A
Output: 12V DC / 24W / 2,08A Max
Cable length: 3m
Control panel power
supply:
12V DC / 24W / 2A Max
Humidity: 75% maximum
Operating
temperature:
Between 15 and 35°C
(Between 59 and 95°F)
Storage temperature: -10° to 60°C
Warranty: 2 years
